Test prep › Sport Pilot Airplane › Question 35

Sport Pilot Airplane practice question 35

(Refer to FAA-CT-8080-2H, Figure 72.) The positive limit load factor is represented by the

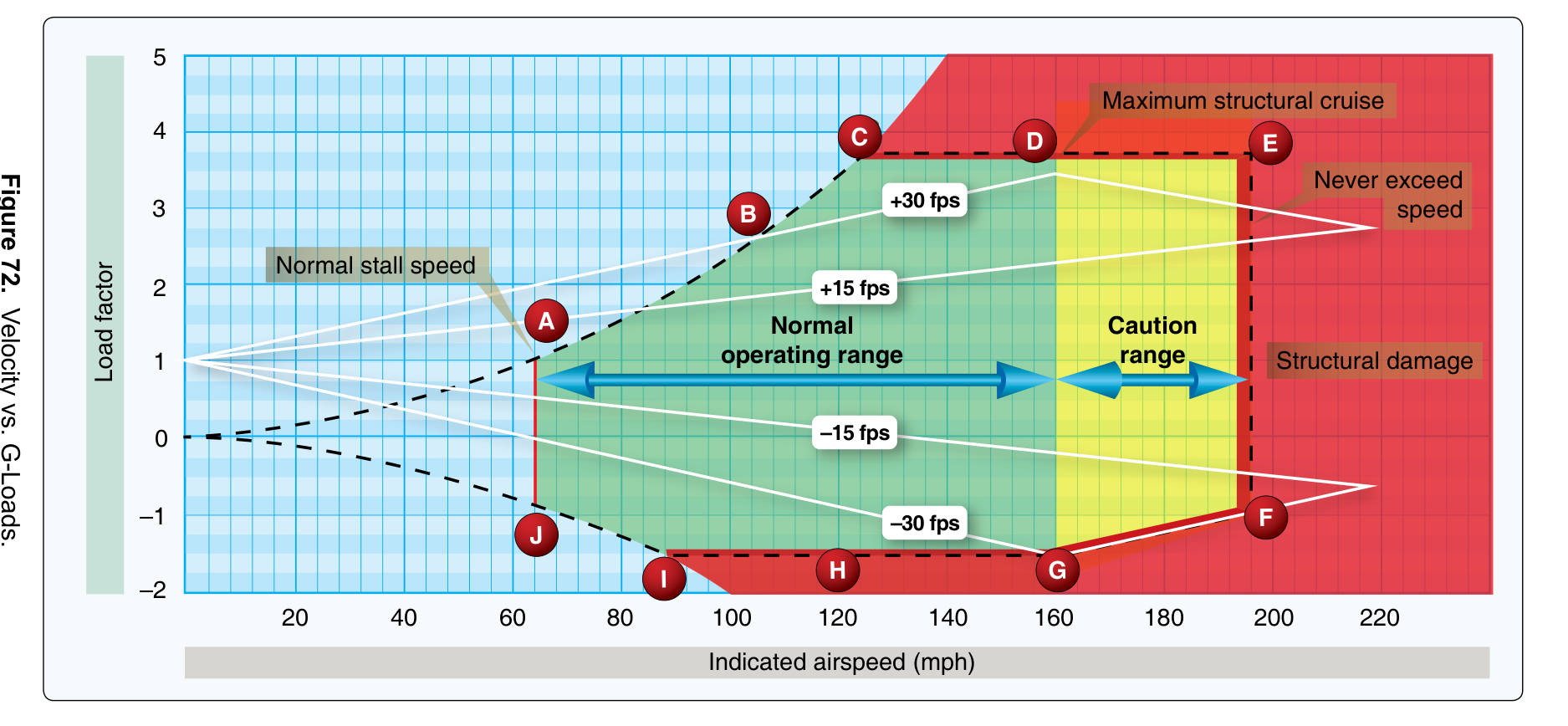

FAA-CT-8080-2H, Figure 72. Velocity vs. G-Loads. U.S. Government work (public domain). Source PDF. Tap to enlarge.

Show answer

Correct answer: C. horizontal dashed line from C to E.

On the V-g diagram the positive limit load factor is the horizontal line along the top of the envelope, from C to E.

References

Pilot's Handbook of Aeronautical Knowledge (FAA-H-8083-25C), ch. 5, Aerodynamics of Flight · search it in our library

Practice 10 random questions Practice 20

← Question 34 All Sport Pilot Airplane questions Question 36 →

Question 35 from the FAA document Sport Pilot Airplane (SPA) Sample Questions (U.S. Government work, public domain) · ACS/LSC code PLT074. The FAA does not publish an answer key; the answer and explanation are ours, with references. Verify against the current regulations and handbooks.
