Test prep › Private Pilot Airplane › Question 30

Private Pilot Airplane practice question 30

(Refer to FAA-CT-8080-2H, Figure 25, area 5.) The navigation facility at Dallas-Ft. Worth International (DFW) is a

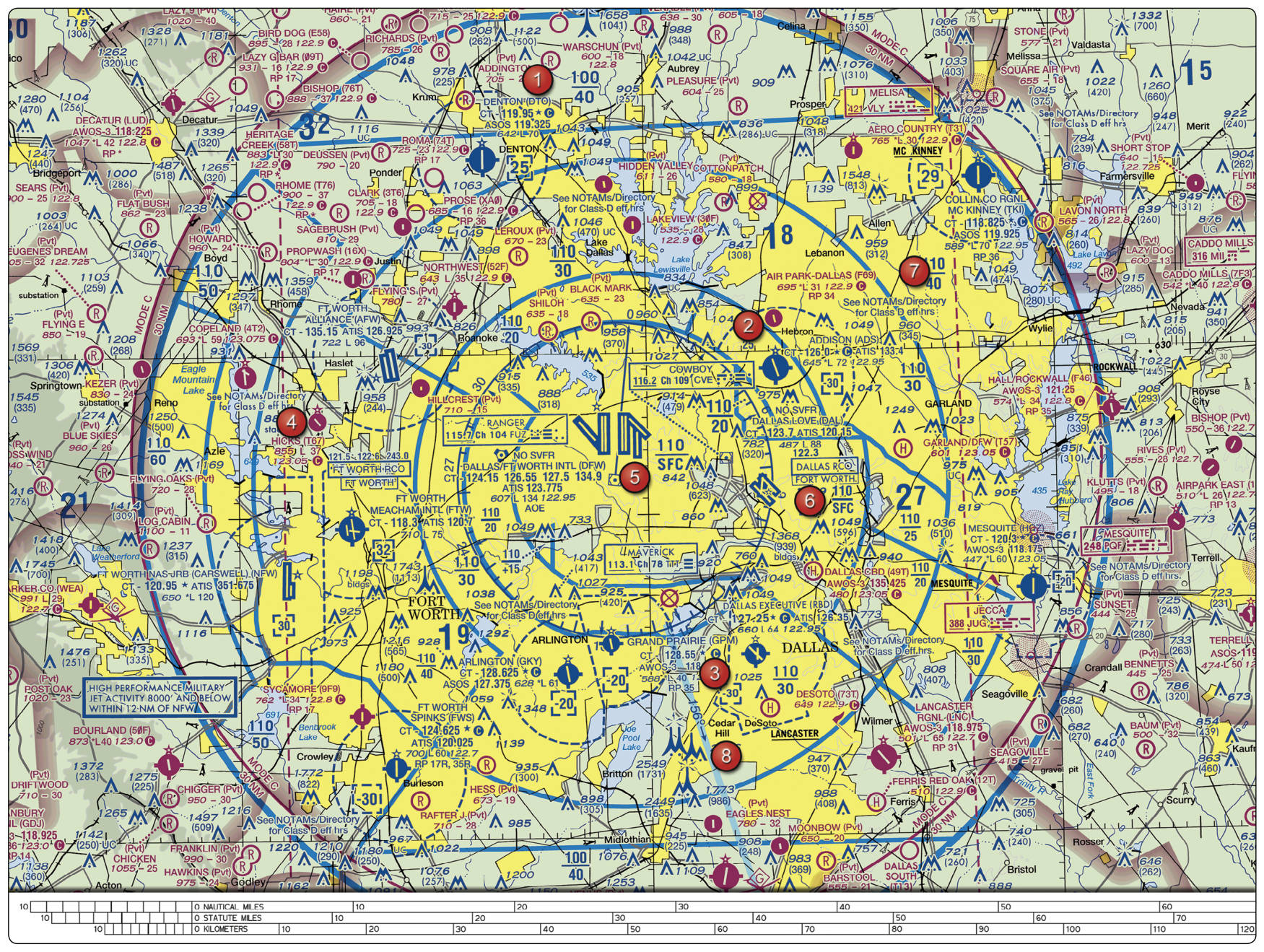

FAA-CT-8080-2H, Figure 25. Sectional Chart Excerpt. U.S. Government work (public domain). Source PDF. Tap to enlarge.

Show answer

Correct answer: C. VOR/DME.

The navaid at DFW (AOE) uses the square-with-a-dot symbol, which on sectional charts denotes a VOR/DME.

References

Pilot's Handbook of Aeronautical Knowledge (FAA-H-8083-25C), ch. 16, Navigation · search it in our library

Practice 10 random questions Practice 20

← Question 29 All Private Pilot Airplane questions Question 31 →

Question 30 from the FAA document Private Pilot-Airplane (PAR) Sample Questions (U.S. Government work, public domain) · ACS/LSC code PA.I.E.K2. The FAA does not publish an answer key; the answer and explanation are ours, with references. Verify against the current regulations and handbooks.
